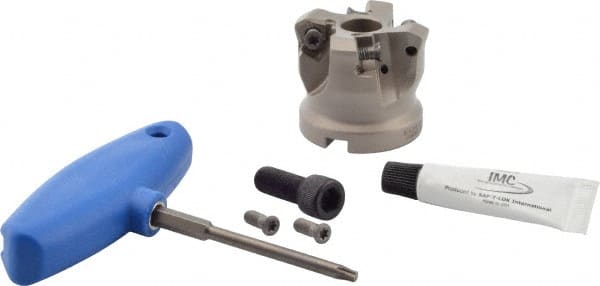

Iscar - 2" Cut Diam, 3/4" Arbor Hole, 0.138" Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 4 Inserts, H600 WXCU 0806 Insert, Right Hand Cut, 4 Flutes, Series Helido
Item #: 63103691
Brand: Iscar
Model #: 3106028
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 30 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | H600 WXCU 0806 |
| Series | Helido |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | MF FWX-08 |
| Number of Flutes | 4 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.3010 |
| Maximum Insert Radius (Decimal Inch) | 0.0630 |
| Complete Insert Compatibility | H600 WXCU 080612HP; H600 WXCU 080612T; H600 WXCU 080616RM |
