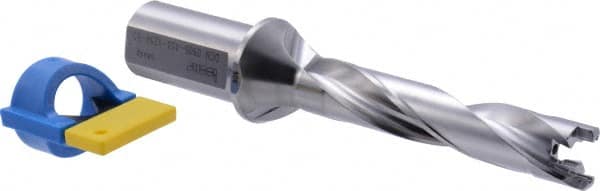

Iscar - 29/32" to 0.941" Diam, 5xD, 4.53" Max Depth, 1-1/4" Shank Diam, 8.32" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 63105779 Toolholder, Series SumoCham
Item #: 63105779
Brand: Iscar
Model #: 3201742
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.9060 |
| Maximum Drill Diameter (Decimal Inch) | 0.9410 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 4.5300 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 5.9600 |
| Overall Length (Decimal Inch) | 8.3200 |
| Shank Length (Decimal Inch) | 2.3600 |
