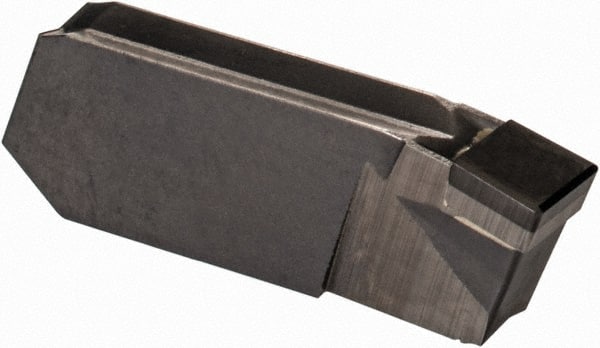

Grooving Insert: GITM300K020 IB50, Cubic Boron Nitride Uncoated, Neutral, 3 mm Cutting Width, 0.3 mm Max Depth, Series Cut-Grip
Item #: 63106736
Brand: Iscar
Model #: 6402558
Product Specifications
| Insert Style | GITM |
| Insert Size Code | 300K020 |
| Insert Size | 300K020 |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | IB50 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0120 |
| Maximum Depth of Cut (mm) | 0.30 |
| Insert Holding Method | Self Grip |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Lead Angle | 20 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning; Parting |
| Series | Cut Grip |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.5900 |
| Overall Length (mm) | 14.99 |
| Primary Workpiece Material | Hard Material; Cast Iron |
| Primary Workpiece Material Code | H; K |
| Iso Code | GITM 3.00K-0.20 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | GITM 3.00K-0.20 |
| Full Radius | No |
| Coating/Finish | Uncoated |
| Single Or Double End | Single |
