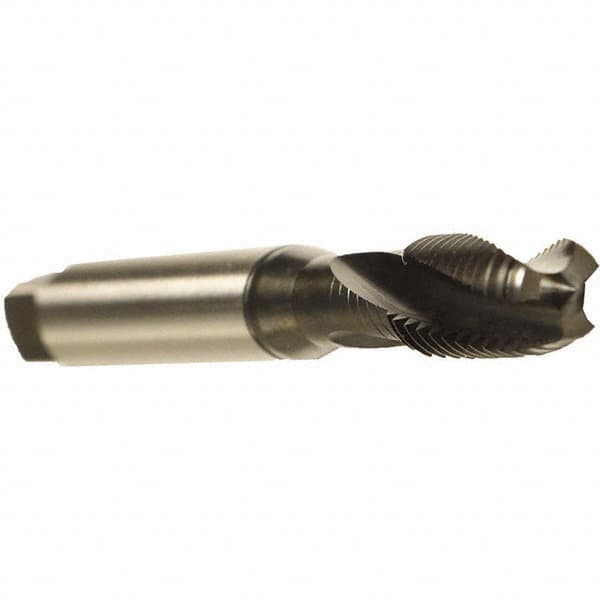

Emuge - #10-32 UNF 3 Flute 3BX Modified Bottoming Spiral Flute Tap - Cobalt, Oxide Finish, 2-3/8" OAL, Right Hand Flute, Right Hand Thread, Series Rekord D
Item #: 63106942
Brand: Emuge
Model #: AU456011.5041
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Slow Spiral Flutes with 8-20 degree angles are used for tough materials like high nickel alloys, titanium and some series of stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #10-32 |
| Chamfer | Modified Bottoming |
| Class of Fit | 3BX |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | Oxide |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.3750 |
| Overall Length (Inch) | 2-3/8 |
| Helix Angle | 15 |
| Thread Standard | UNF |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.5910 |
| Flute Type | Slow Spiral |
| Series/List | Rekord D |
| Tapping Depth (Decimal Inch) | 0.9450 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Shank Length (Decimal Inch) | 1.4350 |
| Material Application | Cast Iron; Cobalt Alloys; Copper Alloys; Nickel; Nickel Alloys; Stainless Steel; Steel; Titanium; Titanium Alloys |
