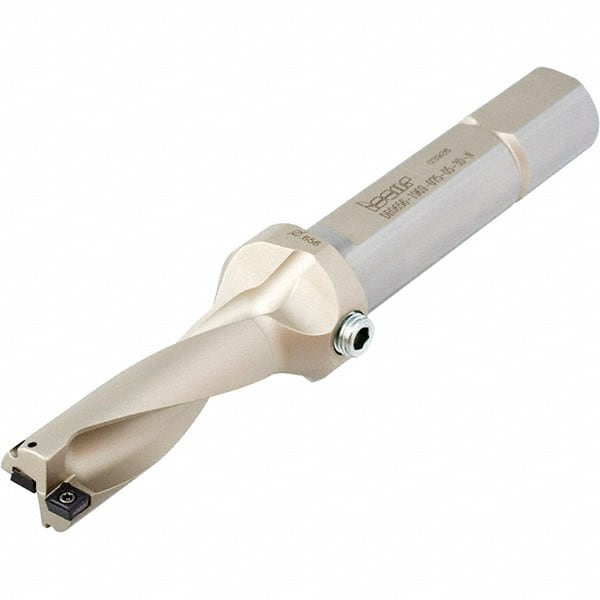

Iscar - 2.53" Max Drill Depth, 3xD, 27/32" Diam, Indexable Insert Drill - 1" Shank Diam, Straight Shank
Item #: 63107866
Brand: Iscar
Model #: 3201398
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Inch) | 27/32 |
| Drill Diameter (Decimal Inch) | 0.8438 |
| Maximum Drill Depth (Decimal Inch) | 2.5300 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Diameter (Decimal Inch) | 0.9720 |
| Overall Length/Projection (Decimal Inch) | 6.4000 |
| Insert Compatibility | SOGX-AL; SOMX-DT; SOMX-GF; SOMX-HD |
| Body Length (Decimal Inch) | 3.4000 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (Decimal Inch) | 1.2600 |
| Series | DR-TWIST |
