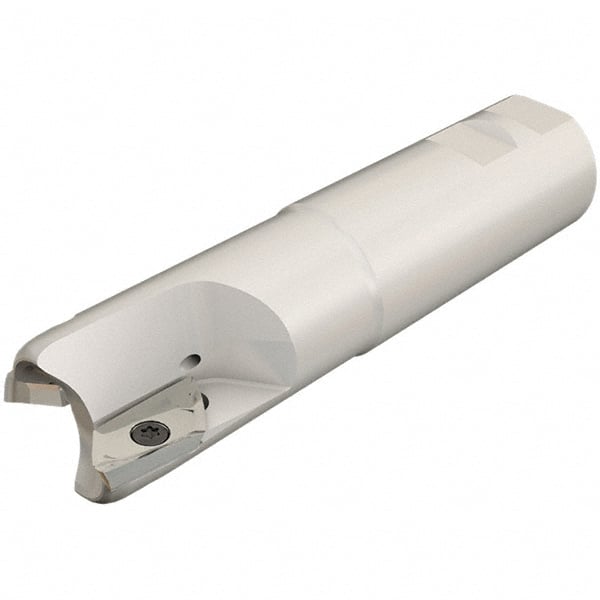

Iscar - 1" Cut Diam, 0.807" Max Depth of Cut, 1" Shank Diam, 5.3" OAL, Indexable Square Shoulder End Mill - Weldon Shank, 90° Lead Angle, Through Coolant, Series Helialu
Item #: 63111694
Brand: Iscar
Model #: 3103540
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 5.3000 |
| Lead Angle | 90 |
| Series | Helialu |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.8070 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (Decimal Inch) | 3.0000 |
| Weldon Flat | Yes |
| Maximum RPM | 7000 |
