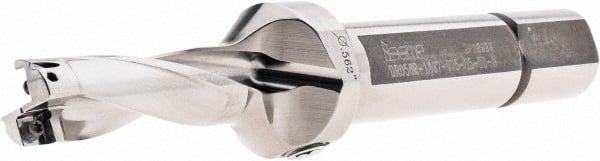

Iscar - 1.69" Max Drill Depth, 3xD, 9/16" Diam, Indexable Insert Drill - 3/4" Shank Diam, Straight Shank
Item #: 63111702
Brand: Iscar
Model #: 3201320
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Inch) | 9/16 |
| Drill Diameter (Decimal Inch) | 0.5620 |
| Maximum Drill Depth (Decimal Inch) | 1.6900 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Diameter (Decimal Inch) | 0.6650 |
| Overall Length/Projection (Decimal Inch) | 5.5100 |
| Insert Compatibility | SOGX-AL; SOMX-DT; SOMX-GF; SOMX-HD |
| Body Length (Decimal Inch) | 2.5100 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (Decimal Inch) | 1.1020 |
| Series | DR-TWIST |
