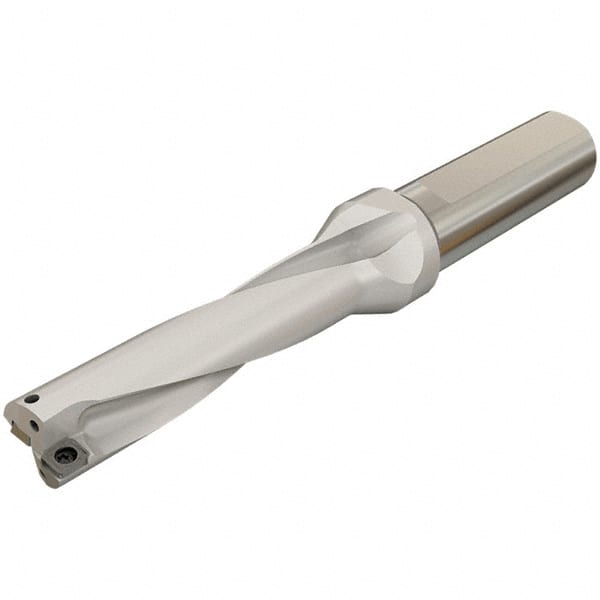

Iscar - 62mm Max Drill Depth, 4xD, 15.5mm Diam, Indexable Insert Drill - 20mm Shank Diam, Whistle Notch Shank
Item #: 63111710
Brand: Iscar
Model #: 3201328
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 15.50 |
| Drill Diameter (Decimal Inch) | 0.6102 |
| Maximum Drill Depth (mm) | 62.00 |
| Maximum Drill Depth (Decimal Inch) | 2.4409 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Maximum Drill Diameter (Decimal Inch) | 0.6929 |
| Maximum Drill Diameter (mm) | 17.60 |
| Overall Length/Projection (mm) | 70.00 |
| Overall Length/Projection (Decimal Inch) | 2.7559 |
| Insert Compatibility | SOGX-AL; SOMX-DT; SOMX-GF; SOMX-HD |
| Body Length (Decimal Inch) | 3.1496 |
| Body Length (mm) | 80.00 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Collar Diameter (mm) | 25.00 |
| Collar Diameter (Decimal Inch) | 0.9843 |
| Series | DR-TWIST |
