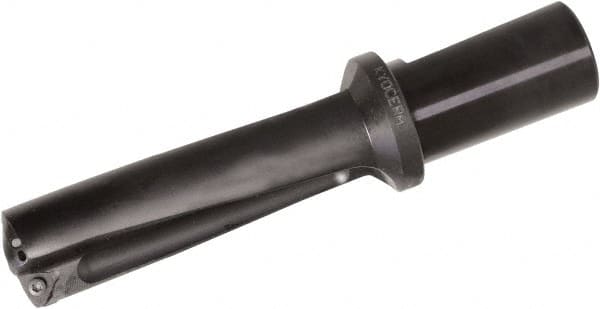

Kyocera - 3.54" Max Drill Depth, 3xD, 30mm Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Whistle Notch Shank
Item #: 63123996
Brand: Kyocera
Model #: 8600807
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 30.00 |
| Drill Diameter (Decimal Inch) | 1.1181 |
| Maximum Drill Depth (Decimal Inch) | 3.5400 |
| Shank Type | Whistle Notch |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Insert Size (Decimal Inch) | 0.1570 |
| Number of Drill Inserts | 2 |
| Insert Compatibility | WCMX 06T308-M1A |
| Body Length (Decimal Inch) | 4.5000 |
| Shank Length (Decimal Inch) | 2.2800 |
| Series | Holeshot |
