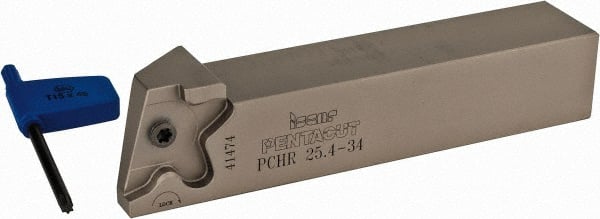

Iscar - PCH, Right Hand, 0.394" Max Depth of Cut, 0.059 to 0.157" Groove Width, Indexable Grooving Tool Holder - PENTA 34.. Insert Compatibility, 1" Shank Height, 1" Shank Width, 5-1/2" OAL
Item #: 63124440
Brand: Iscar
Model #: 2302157
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Minimum Groove Width (Decimal Inch) | 0.0590 |
| Maximum Groove Width (Decimal Inch) | 0.1570 |
| Overall Length (Decimal Inch) | 5.5000 |
| Toolholder Style | PCH |
| Insert Compatibility | PENTA 34.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | PentaCut |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Recessing |
| Insert Holding Method | Screw |
| Maximum Hole Depth (Decimal Inch) | 1.2200 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9300 |
| Head Length (Decimal Inch) | 1.2200 |
| Shank Length (Decimal Inch) | 4.2800 |
| Complete Insert Compatibility | PENTA 34F239-0.15-22L; PENTA 34F239-0.15-22R; PENTA 34F247-0.20-22L; PENTA 34F247-0.20-22R; PENTA 34F300-0.40-22L; PENTA 34F300-0.40-22R; PENTA 34F400-0.40-22L; PENTA 34F400-0.40-22R; PENTA 34L150C08D; PENTA 34L150J06D; PENTA 34L150J15D; PENTA 34L150PB-6D |
