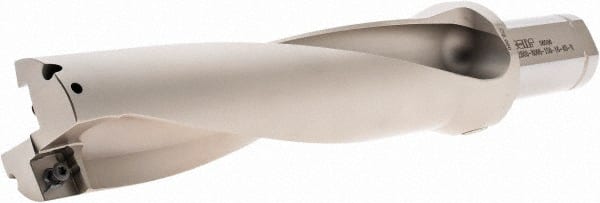

Iscar - 8" Max Drill Depth, 4xD, 2" Diam, Indexable Insert Drill - 1-1/2" Shank Diam, Whistle Notch Shank
Item #: 63124457
Brand: Iscar
Model #: 3201511
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Inch) | 2 |
| Drill Diameter (Decimal Inch) | 2.0000 |
| Maximum Drill Depth (Decimal Inch) | 8.0000 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Maximum Drill Diameter (Decimal Inch) | 2.1450 |
| Overall Length/Projection (Decimal Inch) | 12.4200 |
| Insert Compatibility | SOMT-DT; SOMT-GF; SOMT-HD; SOMX-DT |
| Body Length (Decimal Inch) | 9.4200 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (Decimal Inch) | 2.2800 |
| Series | DR-TWIST |
