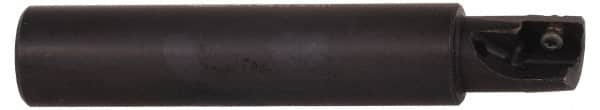

Kennametal - 1-1/4" Cut Diam, 0.392" Max Depth of Cut, 1-1/4" Shank Diam, 8" OAL, Indexable Square Shoulder End Mill - EC10.., EP10.. Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant
Item #: 63220966
Brand: Kennametal
Model #: 3742548
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 8.0000 |
| Lead Angle | 0 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3920 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | Mill 1-10 |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 1.9000 |
| Weldon Flat | No |
| Insert Compatibility | EC10.., EP10.. |
| Maximum RPM | 35500 |
| Coolant Hole Diameter (Decimal Inch) | 0.2750 |
