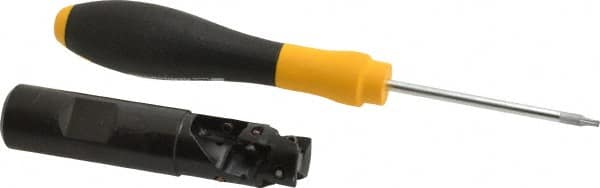

Kennametal - 3/4" Cut Diam, 1.093" Max Depth of Cut, 3/4" Shank Diam, 3.422" OAL, Indexable Square Shoulder Helical End Mill - EC10.., EP10.. Inserts, Weldon Shank, 0° Lead Angle
Item #: 63221329
Brand: Kennametal
Model #: 3746093
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.4220 |
| Lead Angle | 0 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 1.0930 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | Mill 1-10 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.3920 |
| Weldon Flat | Yes |
| Insert Compatibility | EC10.., EP10.. |
| Maximum RPM | 38000 |
| Coolant Hole Diameter (Decimal Inch) | 0.1410 |
