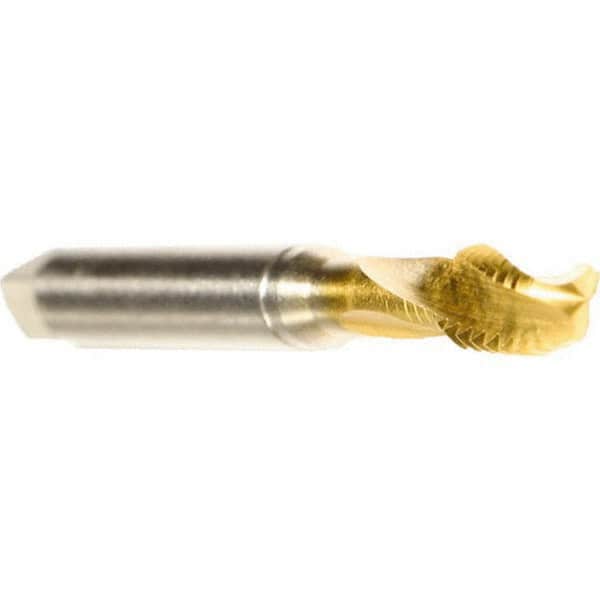

Emuge - M10x1.50 Metric Coarse 3 Flute 6H Bottoming Spiral Flute Tap - TiN Finish, 100mm OAL, Right Hand Flute, Right Hand Thread
Item #: 63302210
Brand: Emuge
Model #: B0453701.0100
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Slow Spiral Flutes with 8-20 degree angles are used for tough materials like high nickel alloys, titanium and some series of stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M10x1.50 |
| Chamfer | Bottoming |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 100.00 |
| Helix Angle | 15 |
| Thread Standard | Metric Coarse |
| Oversize | No |
| Thread Length (mm) | 39.00 |
| Flute Type | Slow Spiral |
| Shank Diameter (mm) | 10.00 |
| Material Application | Alloy Steel; Aluminum Alloys; Cast Iron; Copper Alloys |
