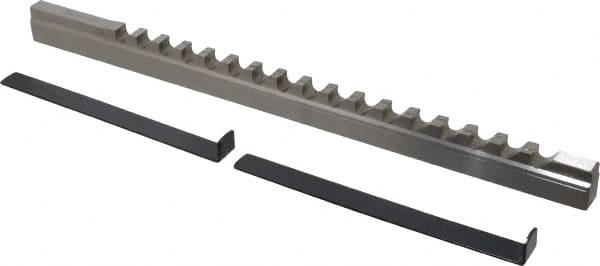

Value Collection - 10mm Keyway Width, Style D-1, Keyway Broach - High Speed Steel, Bright Finish, 9/16" Broach Body Width, 1" to 6" LOC, 13-7/8" OAL
Item #: 63322044
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Keyway broaches are used for producing keyway-shaped holes in a workpiece. They may be used with shims if the depth cannot be broached in a single pass. They also require a guide bushing for producing the keyway.
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Keyway Broach Type | Keyway |
| Keyway Width (mm) | 10.00 |
| Broach Style | D-1 |
| Broach Material | High Speed Steel |
| Broach Coating | Bright |
| Broach Body Width (Inch) | 9/16 |
| Minimum Length of Cut (Inch) | 1 |
| Maximum Length of Cut (Inch) | 6 |
| Overall Length (Inch) | 13-7/8 |
| Standard Millimeter Key Size Compatibility | 10x8 |
| Minimum Keyway Width Tolerance (Decimal Inch) | 0.3930 |
| Maximum Keyway Width Tolerance (Decimal Inch) | 0.3942 |
| Number of Shims Required | 2 |
| Number of Teeth | 17 |
| Tooth Pitch (Inch) | 5/8 |
| Material Application | Ferrous and Non-Ferrous Metals |
