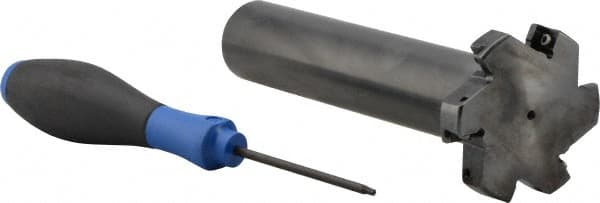

Seco - Shank Connection, 1/2" Cutting Width, 5/8" Depth of Cut, 2-1/2" Cutter Diam, 3 Tooth Indexable Slotting Cutter - 1-1/4" Shank Diam, R335.18 Toolholder, LNK.. 08.. Insert, Right Hand Cutting Direction
Item #: 63421176
Brand: Seco
Model #: 21525
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Cutting Width (Decimal Inch) | 0.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6260 |
| Cutter Diameter (Decimal Inch) | 2.5000 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 3 |
| Toolholder Style | R335.18 |
| Series | R335.18 |
| Insert Style | LNK.. 08.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 11900 |
| Minimum Cutting Width (Decimal Inch) | 0.5000 |
| Maximum Cutting Width (Decimal Inch) | 0.5000 |
| Radius | No |
| Shank Length (Decimal Inch) | 6.2500 |
| Weldon Flat | No |
| Complete Insert Compatibility1 | LNKT 080504PPN-E05; LNKT 080504PPTN-M06; LNKT 080508PPN-E05; LNKT 080508PPTN-M06; LNKT 080516PPN-E05; LNKT 080516PPTN-M06; LNKT 080520PPN-E05; LNKT 080520PPTN-M06; LNKT 080524PPN-E05; LNKT 080524PPTN-M06; LNKT 080531PPN-E05; LNKT 080531PPTN-M06; LNKT 0805 |
