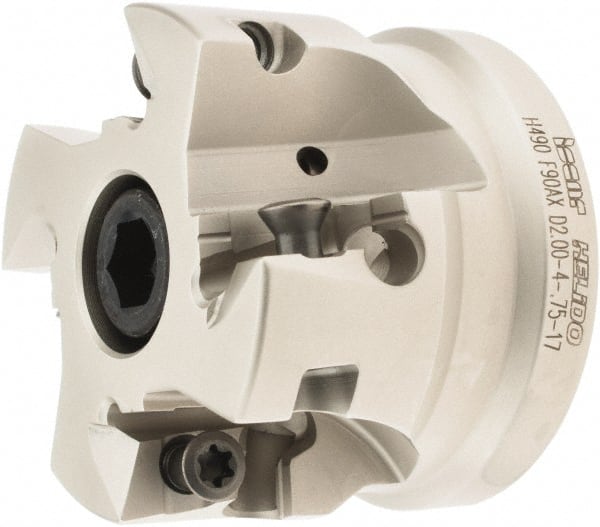

Iscar - 4 Inserts, 2" Cut Diam, 3/4" Arbor Diam, 0.642" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1.57" High, H490 AN.X 1706 Insert Compatibility, Through Coolant, Series Helido
Item #: 63441265
Brand: Iscar
Model #: 3104620
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.5700 |
| Insert Compatibility | H490 AN.X 1706 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.6420 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | H490 F90AX-17 |
| Number of Flutes | 4 |
| Complete Insert Compatibility | H490 ANCX 170608PDR; H490 ANCX 1706R15T-FF; H490 ANKX 170612PNTR; H490 ANKX 170616PNTR; H490 ANKX 170620PNTR; H490 ANKX 170624PNTR; H490 ANKX 1706R15T-FF |
