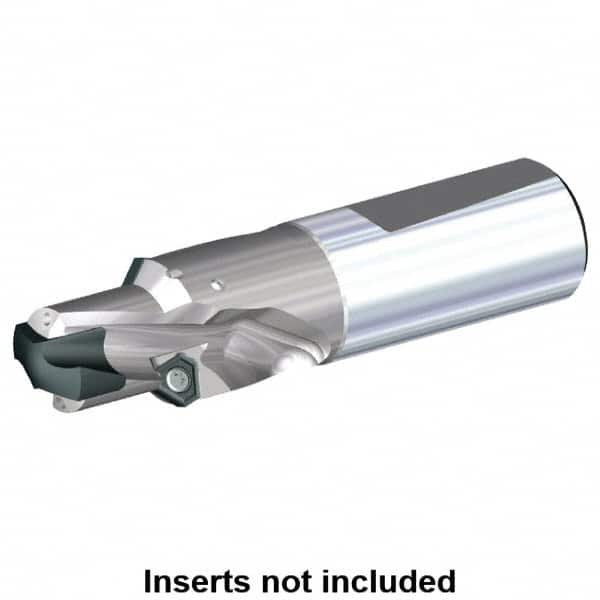

Kennametal - 22.01 to 24mm Diam, 1xD, 24mm Max Depth, 63/64" Shank Diam, 122.55mm OAL, Replaceable Tip Drill - KSEM2201, TPGX 1303ZPR Insert, 4 Seat Size, KSEM Toolholder, Series KSEM Chamfer
Item #: 63492987
Brand: Kennametal
Model #: 1993404
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Chamfer |
| Minimum Drill Diameter (mm) | 22.01 |
| Minimum Drill Diameter (Decimal Inch) | 0.8665 |
| Maximum Drill Diameter (mm) | 24.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.9448 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 0.9449 |
| Maximum Drill Depth (mm) | 24.00 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Insert Style | KSEM2201; TPGX 1303ZPR |
| Insert Seat Size | 4 |
| Toolholder Style | KSEM |
| Through Coolant | Through Coolant |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Shank Type | Whistle Notch |
| Tip Length (mm) | 3.49 |
| Tip Length (Decimal Inch) | 0.1375 |
| Overall Length (mm) | 122.55 |
| Overall Length (Decimal Inch) | 4.8248 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
