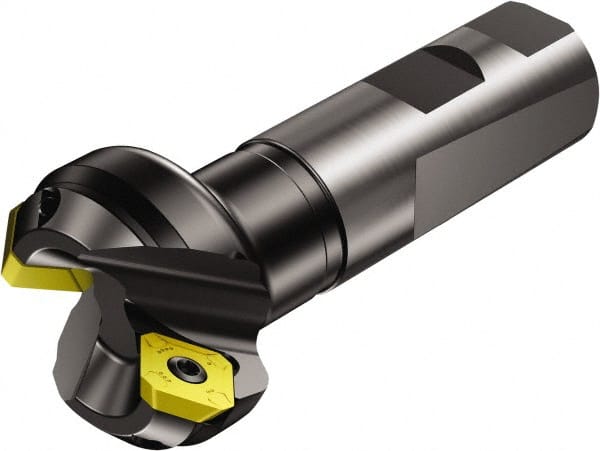

Sandvik Coromant - 2" Cut Diam, 0.24" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 4 Inserts, R245-12T3.. Insert, Right Hand Cut, Series CoroMill 245
Item #: 63554950
Brand: Sandvik Coromant
Model #: 5738671
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 3.9764 |
| Insert Compatibility | R245-12T3.. |
| Series | CoroMill 245 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2400 |
| Number of Cutter Inserts | 4 |
| Cutter Style | RA245..MNxx |
| Maximum RPM | 16250 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | R245-12T3.. |
| Toolholder Material | Steel |
