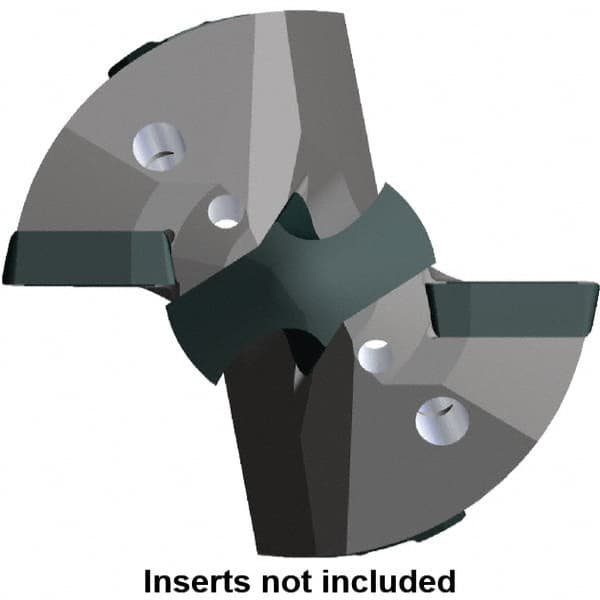

Kennametal - Series KSEM Plus, Head Connection FDS80, 88.9mm Max Diam Pilot Insert Drill Head - 40mm Pilot Drill Diam, 55.63mm Head Length
Item #: 63609796
Brand: Kennametal
Model #: 5397564
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS80 |
| Pilot Type | Pilot Insert |
| Maximum Drill Diameter (mm) | 88.90 |
| Maximum Drill Diameter (Decimal Inch) | 3.5000 |
| Pilot Drill Diameter (mm) | 40.00 |
| Pilot Drill Diameter (Decimal Inch) | 1.5748 |
| Head Length (mm) | 55.63 |
| Head Length (Decimal Inch) | 2.1900 |
| Drill Head Style | B1 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Head Length to Pilot Tip (Decimal Inch) | 2.1900 |
| Head Length to Pilot Tip (mm) | 55.63 |
| Includes | Insert screw; Wrench |
