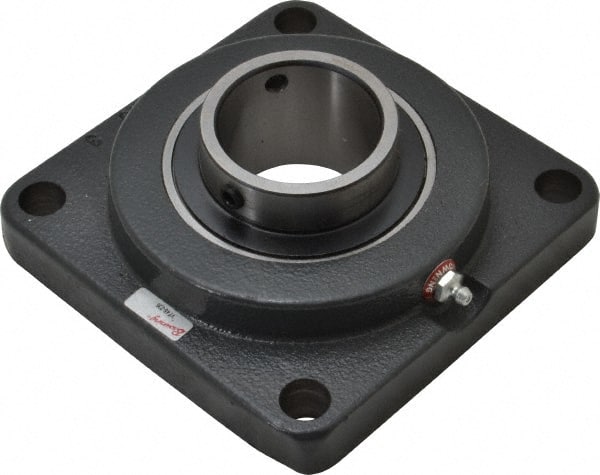

Browning - 2-3/16" ID, 6-3/8" OAL x 6-3/8" OAH 4-Bolt Flange - 6,601 Lb Static Cap, 9,752 Lb Dyn Cap, 5-1/8" Btw Mnt Hole Ctrs, Cast Iron
Item #: 63681118
Brand: Browning
Model #: VF4S-235
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 4-Bolt Flange |
| Inside Diameter (Inch) | 2-3/16 |
| Width (Inch) | 2-5/16 |
| Overall Length (Inch) | 6-3/8 |
| Overall Height (Inch) | 6-3/8 |
| Static Load Capacity (Pounds) | 6601.00 |
| Dynamic Load Capacity (Pounds) | 9752 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 5.1250 |
| Distance Between Mounting Hole Centers (Inch) | 5-1/8 |
| Material | Cast Iron |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 5/8 |
