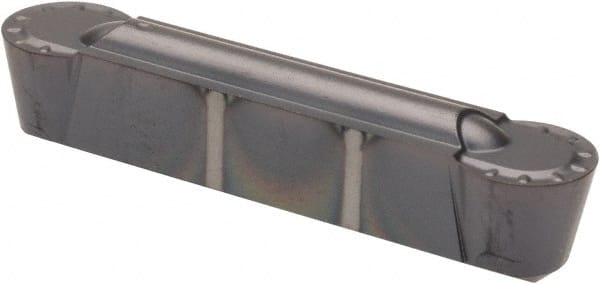

Kennametal - 250R GMN Grade KC5010, 6.35mm Cutting Width Carbide Grooving Insert - 5.2mm Max Depth of Cut, Neutral, 1/8" Corner Radius, TiAlN Finish
Item #: 63703672
Brand: Kennametal
Model #: 2275093
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R |
| Insert Size | 250 |
| Material | Carbide |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 5.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.2047 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | KC5010 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Insert Seat Size | 6 |
| Chipbreaker | GMN |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (Decimal Inch) | 0.1250 |
| Coating Process | PVD |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1811 |
| Series | A4 |
| Manufacturers Catalog Number | A4R250I06P00GMN |
