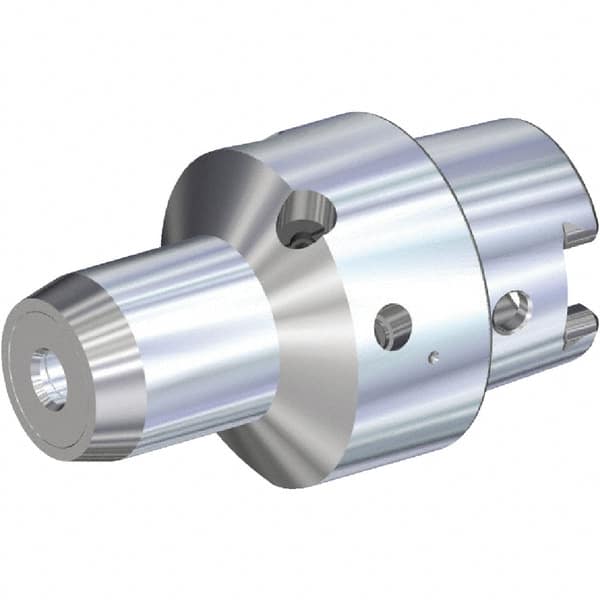

Kennametal - HSK50C Taper Shank, 6mm Hole Diam, Hydraulic Tool Holder/Chuck - 25.7mm Nose Diam, 60mm Projection, 26mm Clamp Depth, 15,000 RPM, Through Coolant
Item #: 63784698
Brand: Kennametal
Model #: 1245497
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK50C |
| Hole Diameter (Decimal Inch) | 0.2362 |
| Hole Diameter (mm) | 6.00 |
| Nose Diameter (Decimal Inch) | 1.0118 |
| Nose Diameter (mm) | 25.70 |
| Projection (Decimal Inch) | 2.3622 |
| Projection (mm) | 60.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 26.00 |
| Clamping Depth (Decimal Inch) | 1.0236 |
| Overall Length (mm) | 85.00 |
| Overall Length (Decimal Inch) | 3.3465 |
| Balanced to (RPM) | 15000 |
