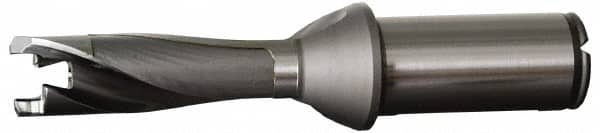

Kennametal - 17 to 17.99mm Diam, 5xD, 90mm Max Depth, 20mm Shank Diam, 113mm Flute, 169mm OAL, Replaceable Tip Drill - KTIP1700HPM Insert, V Seat Size, Series KenTIP
Item #: 63787386
Brand: Kennametal
Model #: 3017675
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 17.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6693 |
| Maximum Drill Diameter (mm) | 17.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7083 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 90.00 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | KTIP1700HPM |
| Insert Seat Size | V |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 2.90 |
| Flute Length (mm) | 113.00 |
| Flute Length (Decimal Inch) | 4.4488 |
| Body Length (mm) | 119.00 |
| Overall Length (mm) | 169.00 |
| Shank Length (mm) | 50.00 |
