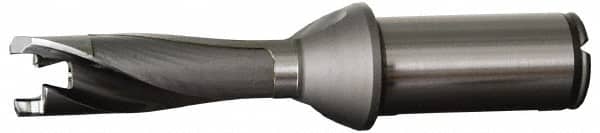

Kennametal - 18 to 18.99mm Diam, 5xD, 95mm Max Depth, 63/64" Shank Diam, 119mm Flute, 181mm OAL, Replaceable Tip Drill - KTIP1800HPM Insert, W Seat Size, Series KenTIP
Item #: 63787394
Brand: Kennametal
Model #: 3017676
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 18.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Diameter (mm) | 18.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7476 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 95.00 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Insert Style | KTIP1800HPM |
| Insert Seat Size | W |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 3.10 |
| Flute Length (mm) | 119.00 |
| Flute Length (Decimal Inch) | 4.6850 |
| Body Length (mm) | 125.00 |
| Overall Length (mm) | 181.00 |
| Overall Length (Decimal Inch) | 7.1260 |
| Shank Length (mm) | 56.00 |
