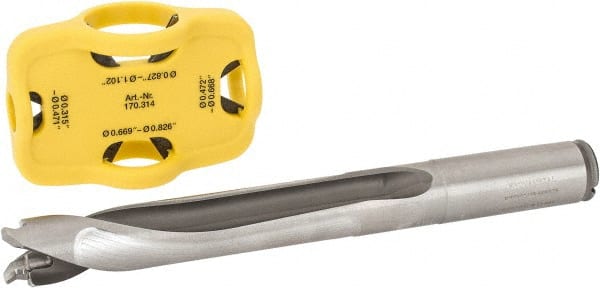

Kennametal - 19 to 19.99mm Diam, 5xD, 3.94" Max Depth, 3/4" Shank Diam, 5" Flute, 7.13" OAL, Replaceable Tip Drill - X Seat Size, Series KenTIP
Item #: 63787485
Brand: Kennametal
Model #: 3018934
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 19.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Diameter (mm) | 19.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7870 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 3.9400 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Seat Size | X |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Tip Length (Decimal Inch) | 0.1300 |
| Flute Length (Decimal Inch) | 5.0100 |
| Overall Length (Decimal Inch) | 7.1300 |
| Shank Length (Decimal Inch) | 2.0000 |
