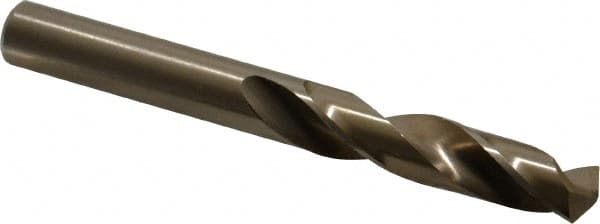

Screw Machine Length Drill Bit: 0.323″ Dia, 135 °, Cobalt Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 2133
Item #: 63795165
Brand: Cleveland
Model #: C14680
Product Specifications
| Drill Bit Size (Letter) | P |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 135 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3230 |
| Drill Bit Size (Decimal Inch) | 0.3230 |
| Overall Length (Inch) | 2-15/16 |
| Series | 2133 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Screw Machine |
| Shank Length (Inch) | 1-1/4 |
| Shank Length (Decimal Inch) | 1.2500 |
| Shank Length (mm) | 31.75 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0010 in |
| Standards | ASME B94.11M |
| Flute Length (Inch) | 1-11/16 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN; ANSI |
| Material Grade | M42 |
