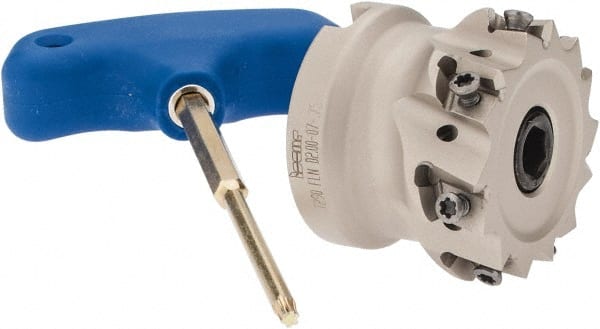

Iscar - 7 Inserts, 2" Cut Diam, 3/4" Arbor Diam, 0.354" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1.575" High, T290 LN.T 1004 Insert Compatibility, Through Coolant, Series SumoMill
Item #: 63851356
Brand: Iscar
Model #: 3105984
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.5750 |
| Insert Compatibility | T290 LN.T 1004 |
| Series | SumoMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | T290 FLN-10 |
| Number of Flutes | 7 |
| Cutting Edge Length (Decimal Inch) | 0.3540 |
| Complete Insert Compatibility | T290 LNMT/LNHT 1004 |
