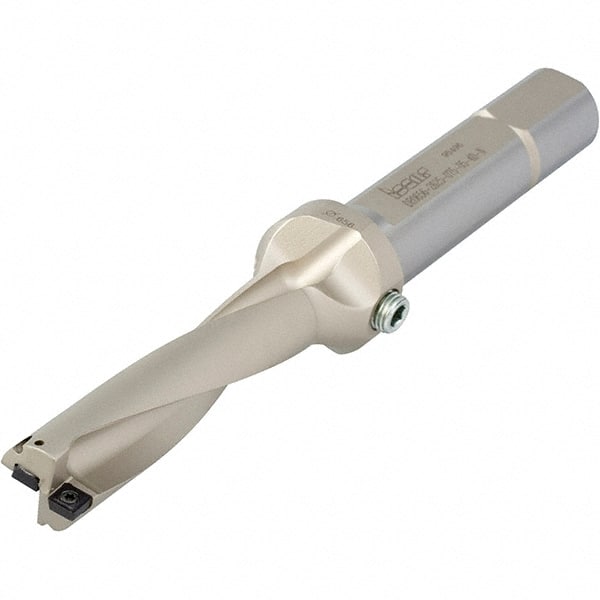

Iscar - 4.53" Max Drill Depth, 5xD, 29/32" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 63892087
Brand: Iscar
Model #: 3260144
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Inch) | 29/32 |
| Drill Diameter (Decimal Inch) | 0.9063 |
| Maximum Drill Depth (Decimal Inch) | 4.5300 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9790 |
| Overall Length/Projection (Decimal Inch) | 8.3800 |
| Insert Compatibility | SOGX-AL; SOMX-DT; SOMX-GF |
| Body Length (Decimal Inch) | 5.3800 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (Decimal Inch) | 1.2500 |
| Series | DR-TWIST |
| Coolant Hole Thread Type | BSP |
| Body Side Coolant Hole Thread Size (Inch) | 1/16-27 |
| Shank End Coolant Hole Thread Size (Inch) | G3/8 |
