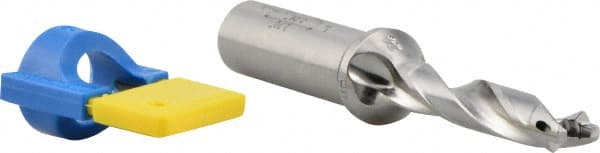

Iscar - 0.413" to 0.429" Diam, 5xD, 2.06" Max Depth, 5/8" Shank Diam, 4.59" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 63973101 Toolholder, Series SumoCham
Item #: 63973101
Brand: Iscar
Model #: 3202624
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.4130 |
| Maximum Drill Diameter (Decimal Inch) | 0.4290 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.0600 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 2.7000 |
| Overall Length (Decimal Inch) | 4.5900 |
| Shank Length (Decimal Inch) | 1.8900 |
