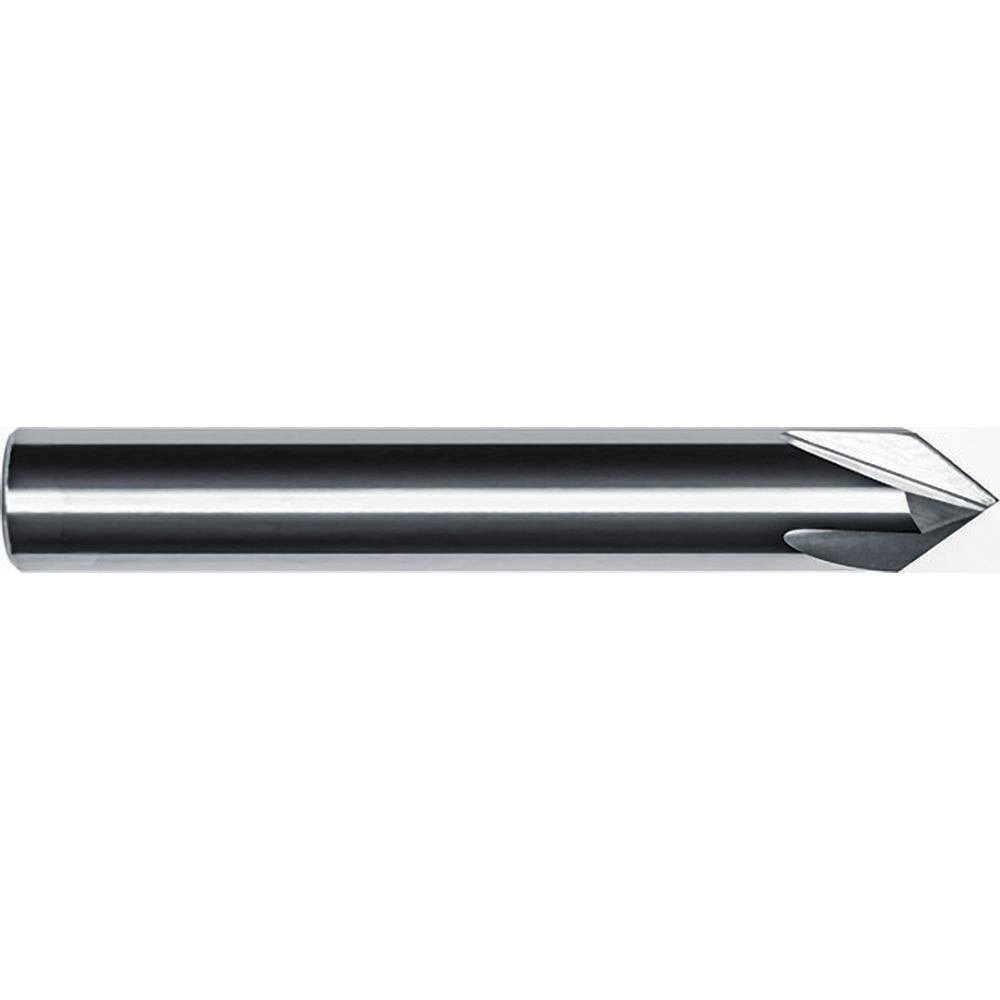

Chamfer Mill: 1/2" Dia, 1/2" Shank Dia, 82.00 deg, 4 Flute, Solid Carbide, Single End
Item #: 75528851
Brand: Internal Tool
Model #: 64-4896-C
Product Specifications
| Cutter Head Diameter (Fractional Inch) | 1/2 |
| Cutter Head Diameter (Decimal Inch) | 0.5000 |
| End Type | Single |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Shank Length (Decimal Inch) | 2.7200 |
| Overall Length (Inch) | 3 |
| Tool Application | Chamfering; Countersinking |
| Number Of Flutes | 4 |
| Cutting Direction | Right Hand |
| Series | 64 |
| Tapered | No |
| Coolant Through | No |
| Chamfer Mill Material | Solid Carbide |
| Material Application | Bronze; Low-Carbon Steel; Monel; Aluminum; Brass; Aluminum Alloy; Iron; Plastic; Nickel Base Alloy; Medium-Carbon Steel; Steel; Molybdenum; High-Nickel Steel; Magnesium Alloy; Stainless Steel; Cast Iron; Titanium; Magnesium; Copper; Copper Alloy |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2800 |
| Coating/Finish | AlTiN |
| Included Angle | 82.00 |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
