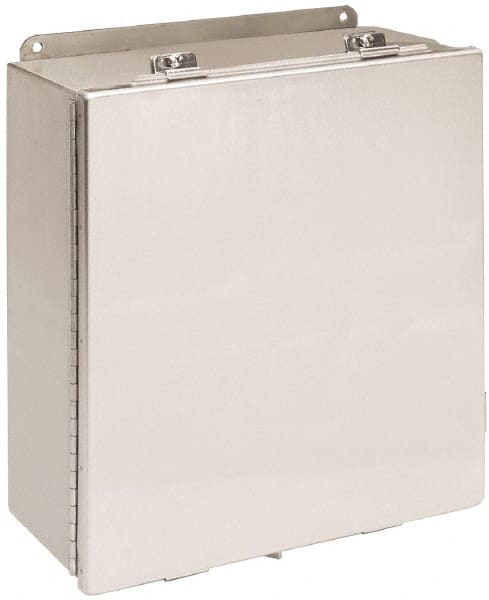

Cooper B-Line - Stainless Steel Standard Enclosure Hinge Flat Cover - NEMA 4, 12, 13, 3RX, 4X, 8" Wide x 10" High x 4" Deep, Corrosion Resistant, Dust-tight, Rainproof & Watertight
Item #: 64052749
Brand: Cooper B-Line
Model #: 1084-4XSCHC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Standard Enclosure |
| Cover Type | Hinge Flat Cover |
| Enclosure Material | Stainless Steel |
| NEMA Rating | 4; 12; 13; 3RX; 4X |
| Overall Width (Inch) | 8 |
| Overall Width (Decimal Inch) | 8 |
| Overall Height (Inch) | 10 |
| Overall Height (Decimal Inch) | 10 |
| Overall Depth (Inch) | 4 |
| Overall Depth (Decimal Inch) | 4 |
| Finish/Coating | #4 Brushed Finish |
| Material Gauge | 16 |
| Resistance Features | Corrosion Resistant; Dust-tight; Rainproof; Watertight |
| Includes | #10-32 Weldnuts; External Mounting Feet; Ground Stud; Seamless Poured-in-place Gasket |
| Standards Met | CSA C22.2 No. 94 Certified; JIC EGP-1-1967; UL Listed 508 |
| Overall Width (mm) | 203 |
| Overall Height (mm) | 254 |
| Overall Depth (mm) | 102 |
