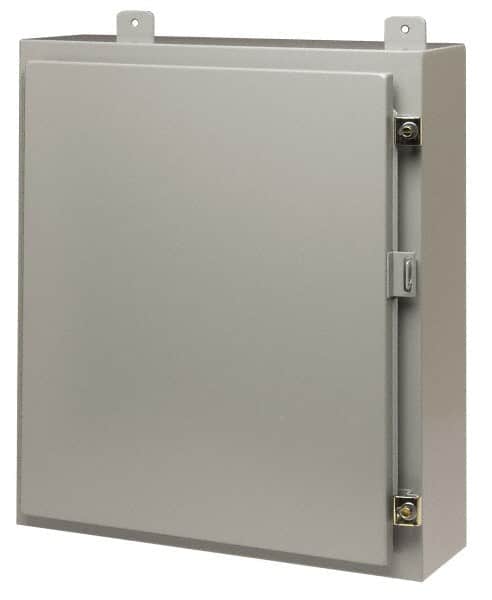

Cooper B-Line - Steel Standard Enclosure Hinge Flat Cover - NEMA 12, 13, 20" Wide x 20" High x 8" Deep, Dirt-tight & Dust-tight
Item #: 64053036
Brand: Cooper B-Line
Model #: 20208-12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Standard Enclosure |
| Cover Type | Hinge Flat Cover |
| Enclosure Material | Steel |
| NEMA Rating | 12; 13 |
| Overall Width (Inch) | 20 |
| Overall Width (Decimal Inch) | 20 |
| Overall Height (Inch) | 20 |
| Overall Height (Decimal Inch) | 20 |
| Overall Depth (Inch) | 8 |
| Overall Depth (Decimal Inch) | 8 |
| Cover Color | Gray |
| Finish/Coating | Polyester Powder Coat Finish |
| Material Gauge | 16 |
| Resistance Features | Dirt-tight; Dust-tight |
| Includes | 0.375-16 Collar Studs; Continuous Hinge; External Mounting Feet; Ground Stud; Padlock Hasp; Print Pocket; Seamless Poured-in-place Gasket |
| Standards Met | ANSI 61; CSA C22.2 No. 94 Certified; UL Listed 508 |
| Overall Width (mm) | 508 |
| Overall Height (mm) | 508 |
| Overall Depth (mm) | 203 |
