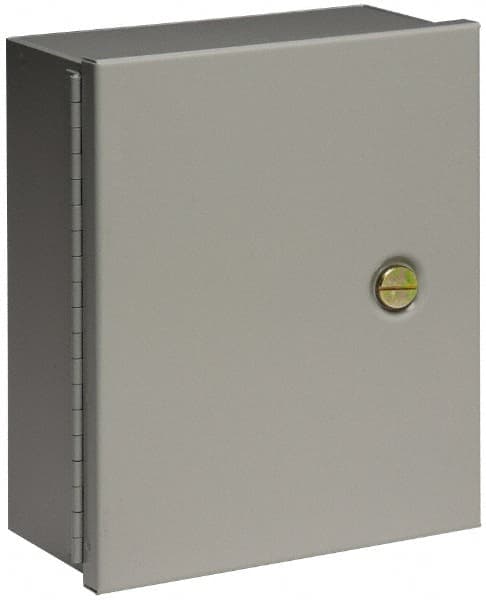

Cooper B-Line - Steel Standard Enclosure Hinge Flat Cover - NEMA 1, 20" Wide x 24" High x 6-5/8" Deep
Item #: 64053051
Brand: Cooper B-Line
Model #: 24206-1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Standard Enclosure |
| Cover Type | Hinge Flat Cover |
| Enclosure Material | Steel |
| NEMA Rating | 1 |
| Overall Width (Inch) | 20 |
| Overall Width (Decimal Inch) | 20 |
| Overall Height (Inch) | 24 |
| Overall Height (Decimal Inch) | 24 |
| Overall Depth (Inch) | 6-5/8 |
| Overall Depth (Decimal Inch) | 6.6200 |
| Cover Color | Gray |
| Finish/Coating | Polyester Powder Coat Finish |
| Material Gauge | 14 |
| Includes | 0.375-16 Provisions; Continuous Hinge; Flush Latches; Mounting Holes |
| Standards Met | ANSI 61; CSA C22.2 No. 40 Certified; UL Listed 50 |
| Overall Width (mm) | 508 |
| Overall Height (mm) | 610 |
| Overall Depth (mm) | 168 |
