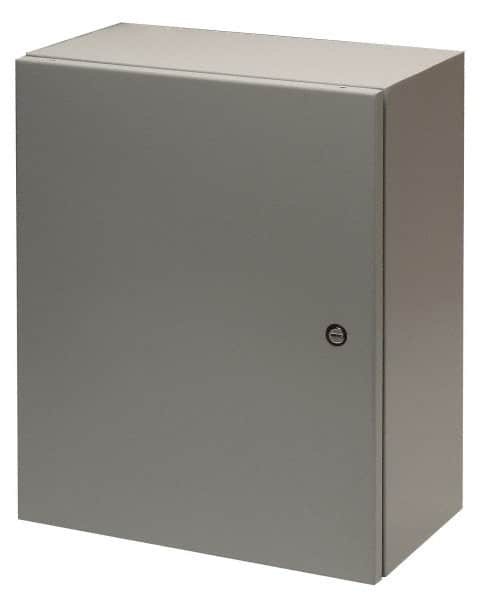

Cooper B-Line - Steel Standard Enclosure Hinge Flat Cover - NEMA 4, 12, 24" Wide x 24" High x 8" Deep, Dirt-tight, Dust-tight, Rainproof & Watertight
Item #: 64073414
Brand: Cooper B-Line
Model #: 24248SD
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Standard Enclosure |
| Cover Type | Hinge Flat Cover |
| Enclosure Material | Steel |
| NEMA Rating | 4; 12 |
| Overall Width (Inch) | 24 |
| Overall Width (Decimal Inch) | 24 |
| Overall Height (Inch) | 24 |
| Overall Height (Decimal Inch) | 24 |
| Overall Depth (Inch) | 8 |
| Overall Depth (Decimal Inch) | 8 |
| Cover Color | Gray |
| Finish/Coating | Polyester Powder Coat Finish |
| Material Gauge | 14; 16 |
| Resistance Features | Dirt-tight; Dust-tight; Rainproof; Watertight |
| Includes | 0.312-18 Collar Studs; 0.312-18 Flanged Hex Nuts; Enclosure Mounting Holes; Ground Stud; Grounding Hardware; Hardware Kit; Utility Bracket |
| Standards Met | ANSI 61; cUL Listed; UL Listed 508 |
| Overall Width (mm) | 610 |
| Overall Height (mm) | 610 |
| Overall Depth (mm) | 203 |
