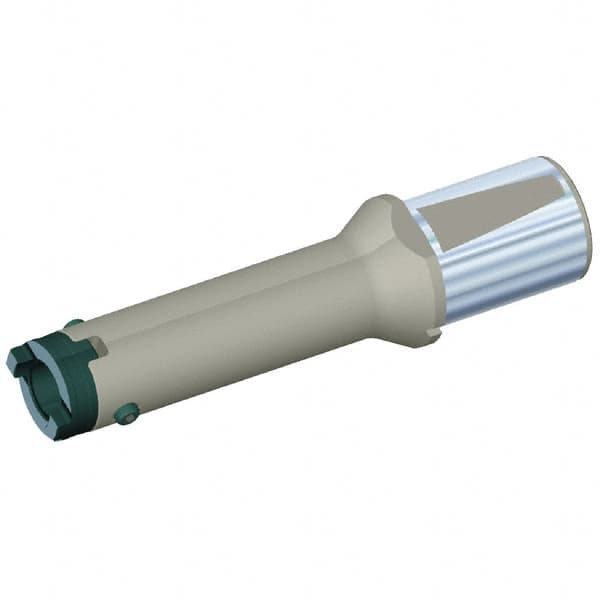

Kennametal - Series HTS, Head Connection 16, 50mm Shank Diam, Drill Body - 315mm Drill Body Length to Flange, 5.34 Toolholder, 32mm Nose Diam, 428mm OAL, 360mm Drill Body Length, Whistle Notch Shank, Through Coolant
Item #: 64102866
Brand: Kennametal
Model #: 1129376
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | HTS |
| Head Connection Size | 16 |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Drill Body Length to Flange (mm) | 315.00 |
| Toolholder Style | 5.34 |
| Nose Diameter (mm) | 32.00 |
| Nose Diameter (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 428.00 |
| Overall Length (Decimal Inch) | 16.8504 |
| Gage Length (mm) | 360.00 |
| Gage Length (Decimal Inch) | 14.1732 |
| Shank Type | Whistle Notch |
| Shank Length (mm) | 68.00 |
| Through Coolant | Through Coolant |
| Includes | Clamping screw; Drive Ring; Side Pipe Plug |
