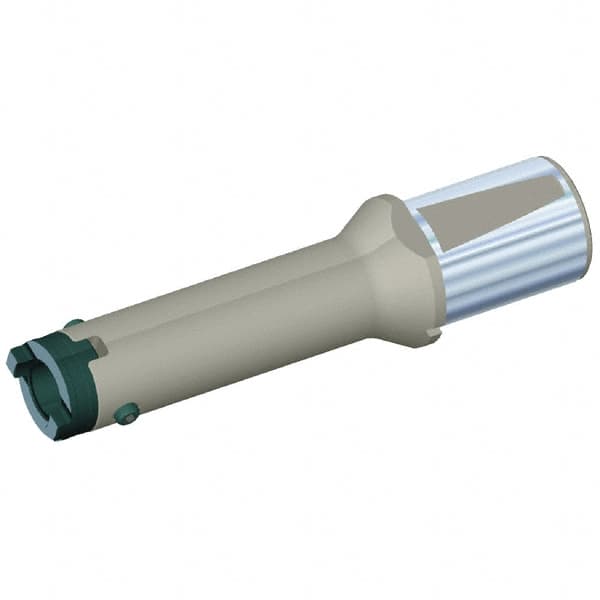

Kennametal - Series HTS, Head Connection 13B, 50mm Shank Diam, Drill Body - 265mm Drill Body Length to Flange, 5.34 Toolholder, 28mm Nose Diam, 378mm OAL, 310mm Drill Body Length, Whistle Notch Shank, Through Coolant
Item #: 64102973
Brand: Kennametal
Model #: 1134415
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | HTS |
| Head Connection Size | 13B |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Drill Body Length to Flange (mm) | 265.00 |
| Toolholder Style | 5.34 |
| Nose Diameter (mm) | 28.00 |
| Nose Diameter (Decimal Inch) | 1.1024 |
| Overall Length (mm) | 378.00 |
| Overall Length (Decimal Inch) | 14.8819 |
| Gage Length (mm) | 310.00 |
| Gage Length (Decimal Inch) | 12.2047 |
| Shank Type | Whistle Notch |
| Shank Length (mm) | 68.00 |
| Through Coolant | Through Coolant |
| Includes | Clamping screw; Drive Ring; Side Pipe Plug |
