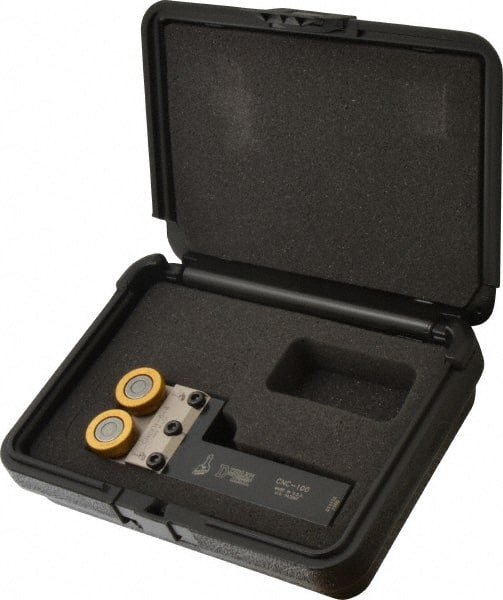

Dorian Tool - Neutral Cut, Diamond & Straight, 1" Wide 1" High x 3-1/2" Long Square Shank, Up-To-Shoulder Bump Knurlers - 2 Knurls Required (Included), 1" Diam x 1/4" Wide Face, Modular, Series SW4
Item #: 64142722
Brand: Dorian Tool
Model #: 73310120790
Exact Tooling IR#: 04
Features and Benefits
Up-to-Shoulder bump knurlers are designed for knurling on the edge of the material. The knurl wheel is held with a pin instead of a supporting tab.
| Product Specifications | |
|---|---|
| Knurler Type | Up-To-Shoulder |
| Cutting Direction | Neutral |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Shank Length (Inch) | 3-1/2 |
| Knurl Diameter (Inch) | 1 |
| Knurl Diameter (mm) | 25.40 |
| Knurl Face Width (Inch) | 1/4 |
| Knurl Face Width (mm) | 6.40 |
| Number of Knurls Required | 2 |
| Knurl Series | SW4 |
| Modular | Yes |
| Includes Knurl Wheels | Yes |
| Pattern | Diamond; Straight |
| Knurl Patterns Included | Straight |
| Shank Shape | Square |
| Overall Length (Inch) | 5-3/4 |
