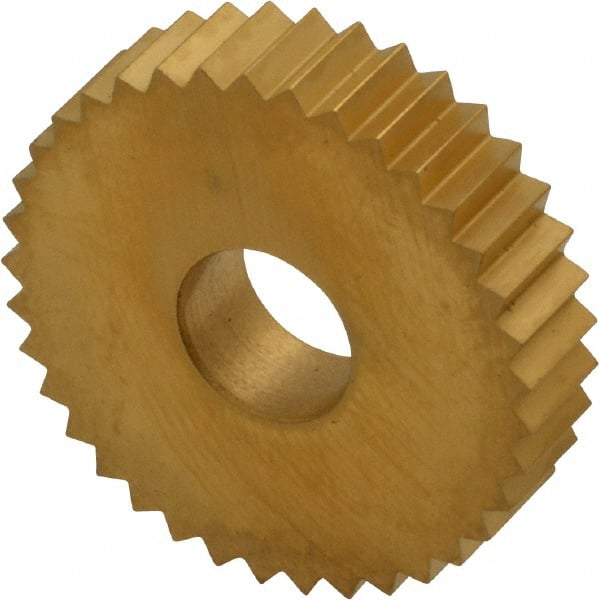

Dorian Tool - 1" Diam, 90° Tooth Angle, 12 TPI, Standard (Shape), Form Type Cobalt Straight Knurl Wheel - 0.236" Face Width, 5/16" Hole, Circular Pitch, TiN Finish, Series M
Item #: 64143647
Brand: Dorian Tool
Model #: 73310125306
Exact Tooling IR#: 04
Features and Benefits
Straight wheels are used to create a straight knurl pattern.
Form wheels produce textured patterns by forming an impression. This process displaces the material and increases the diameter of the workpiece.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
| Product Specifications | |
|---|---|
| Knurl Shape | Standard |
| Pattern | Straight |
| Form or Cut Type | Form |
| Material | Cobalt |
| Knurl Diameter (Decimal Inch) | 1.0000 |
| Knurl Diameter (Inch) | 1 |
| Knurl Diameter (mm) | 25.40 |
| Face Width (Decimal Inch) | 0.2360 |
| Hole Diameter (Decimal Inch) | 0.3125 |
| Hole Diameter (Inch) | 5/16 |
| Pitch System | Circular |
| Pitch (mm) | 2.00 |
| Pitch (TPI) | 12 |
| Knurl Series | M |
| Included Tooth Angle | 90 |
| Finish/Coating | TiN |
| Pitch Style | Coarse |
