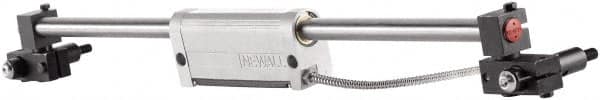

Newall - 192" Max Measuring Range, 5 µm Resolution, 202" Scale Length, Inductive DRO Linear Scale - 10 µm Accuracy, IP67, 11-1/2' Cable Length, Series Spherosyn 2G Encoder
Item #: 64154347
Brand: Newall
Model #: S00A04877035
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Scale Type | Inductive |
| Maximum Measuring Range (mm) | 4877.00 |
| Maximum Measuring Range (Inch) | 192 |
| Resolution (Micron) | 5.00 |
| Resolution (mm) | 0.0050 |
| Resolution (Decimal Inch) | 0.0002/0.0005 |
| Scale Length (Inch) | 202 |
| Scale Length (Decimal Inch) | 202.2000 |
| Accuracy (micrometer) | 10.00 |
| Accuracy (Decimal Inch) | 0.000400 |
| Series | Spherosyn 2G Encoder |
| IP Rating | IP67 |
| Cable Length (Feet) | 11.50 |
