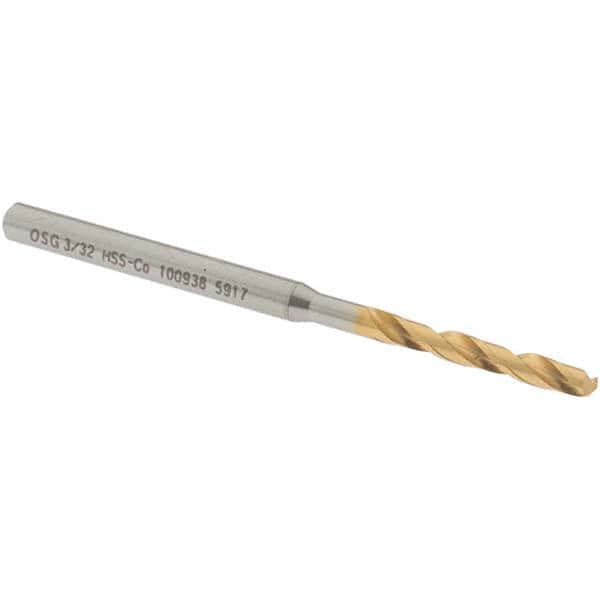

Screw Machine Length Drill Bit: 0.0938″ Dia, 130 °, Cobalt High Speed Steel Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 1000
Item #: 64183528
Brand: OSG
Model #: 10093805
Product Specifications
| Drill Bit Size (Inch) | 3/32 |
| Drill Bit Size (mm) | 2.38 |
| Tool Material | Cobalt High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 130 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Drill Bit Size (Decimal Inch) | 0.0938 |
| Overall Length (mm) | 50.00 |
| Overall Length (Decimal Inch) | 1.9685 |
| Overall Length (Inch) | 2 |
| Series | 1000 |
| Web Thinning | X-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Point Type | X-Thinned |
| Shank Length (Inch) | 1-1/32 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0 to -0.014 mm |
| Flute Length (Inch) | 3/4 |
| Flute Length (mm) | 19.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
