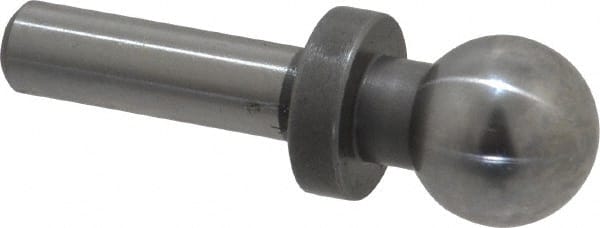

Gibraltar - 1/2" Ball Diam, 1/4" Shank Diam, Steel Inspection Tooling Ball - Press-Fit Shank, 1-3/8" Ball Center to Shank Bottom, 1/2" Ball Center to Shoulder Bottom, with Shoulder
Item #: 64214331
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Tooling Ball Style | Inspection |
| Shoulder | Yes |
| Break-Away | No |
| Material | Steel |
| Ball Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Attachment Type | Press-Fit |
| Tapped Shank | No |
| Heat-Treated | Yes |
| Ball Center to Shank Bottom (Inch) | 1-3/8 |
| Ball Center to Shoulder Bottom (Decimal Inch) | 0.5000 |
| Shank Tolerance (Decimal Inch) | -0.0000; +0.0003 |
| Ball & Shank Concentricity (Decimal Inch) | 0.0002 |
