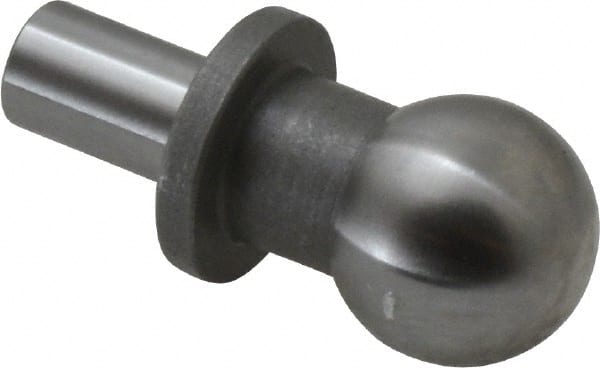

Gibraltar - 12mm Ball Diam, 6mm Shank Diam, Steel Inspection Tooling Ball - Thread Shank, 22mm Ball Center to Shank Bottom, 12mm Ball Center to Shoulder Bottom, with Shoulder
Item #: 64254915
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Tooling Ball Style | Inspection |
| Shoulder | Yes |
| Break-Away | No |
| Material | Steel |
| Ball Diameter (mm) | 12.00 |
| Shank Diameter (mm) | 6.00 |
| Shank Attachment Type | Thread |
| Shoulder Diameter (mm) | 12.50 |
| Tapped Shank | Yes |
| Hole Thread Size | 6-32 |
| Hole Depth (mm) | 6.00 |
| Heat-Treated | Yes |
| Ball Center to Shank Bottom (mm) | 22.00 |
| Ball Center to Shoulder Bottom (mm) | 12.00 |
| Ball & Shank Concentricity (Decimal Inch) | 0.0002 |
