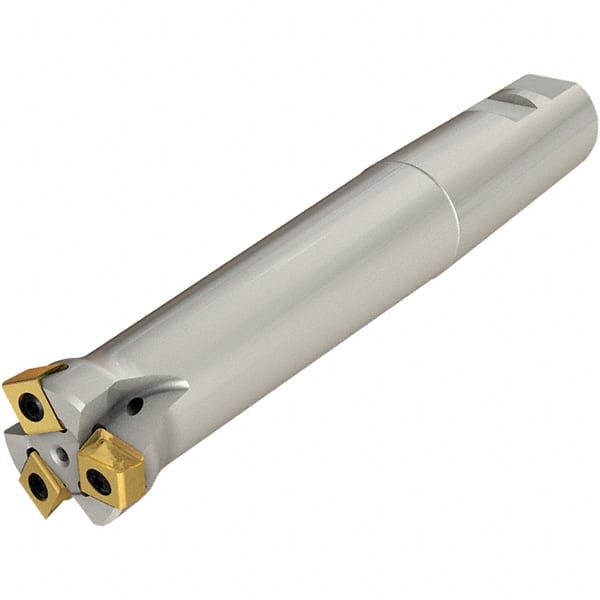

Iscar - 1" Cut Diam, 0.118" Max Depth of Cut, Indexable Plunge End Mill - M12 Modular Connection, HTP LNHT 1006 Insert Style, HTP-M-LN10 Toolholder Style, Through Coolant, Series TangPlunge
Item #: 64261712
Brand: Iscar
Model #: 3105127
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Shank Type | Modular Connection |
| Modular Connection Size | M12 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Cutter Inserts | 2 |
| Insert Style | HTP LNHT 1006 |
| Toolholder Style | HTP-M-LN10 |
| Series | TangPlunge |
| Number of Flutes | 2 |
| Overall Length/Projection (Decimal Inch) | 1.3800 |
| Head Length (Decimal Inch) | 1.3800 |
| Insert Holding Method | Clamp, Screw |
| Through Coolant | Through Coolant |
| End Mill Type | End Mill |
| Rake | Positive |
