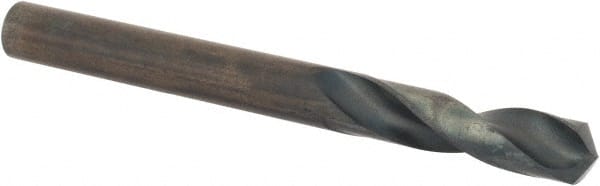

Guhring - 0.2768" 130° Spiral Flute Cobalt Screw Machine Drill Bit
Item #: 64330574
Brand: Guhring
Model #: 9003290070300
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2768 |
| Drill Bit Size (Letter) | J |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 34.00 |
| Overall Length (mm) | 74.00 |
| Point Type | Standard |
| Shank Diameter (Decimal Inch) | 0.2768 |
| Specification Designation | DIN |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.022 |
| Specification Number | DIN 1897 |
| Web Thinning | Web-Thinned |
| Series/List | 329 |
