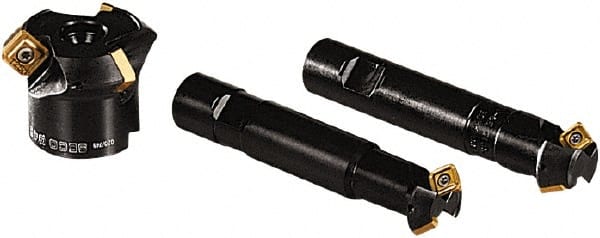

Seco - 45° Lead Angle, 16mm Max Cut Diam, 9mm Min Cut Diam, 4mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 1 Insert, SPMX 0602.. Insert Style, 80mm Overall Length, Straight Shank
Item #: 64506850
Brand: Seco
Model #: 02621
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.3543 |
| Minimum Cutting Diameter (mm) | 9.00 |
| Maximum Cutting Diameter (mm) | 16.00 |
| Maximum Cutting Diameter (Decimal Inch) | 0.6299 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Lead Angle | 45 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Insert Style | SPMX 0602.. |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 4.00 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| Toolholder Style | R215.49 |
| Weldon Flat | Yes |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 0 |
| Shank Length (mm) | 40.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Maximum RPM | 55600 |
