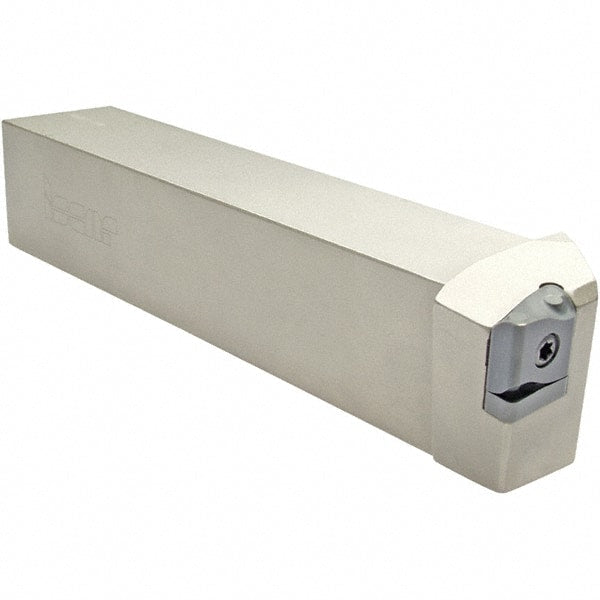

Iscar - 1.654" Min Bore Diam, 14" OAL, 1-1/4" Shank Diam, S-DDUN Indexable Boring Bar - 1.77" Max Bore Depth, DNM.. 43.. Insert, Clamp Holding Method
Item #: 64546708
Brand: Iscar
Model #: 3602617
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-DDUN |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 1.6540 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.7700 |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | DNM.. 43.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.8800 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -10 |
| Complete Insert Compatibility | DNMA 433; DNMG 431-NF; DNMG 432-GN; DNMG 432-NF; DNMG 433-GN |
| Toolholder Material | Steel |
