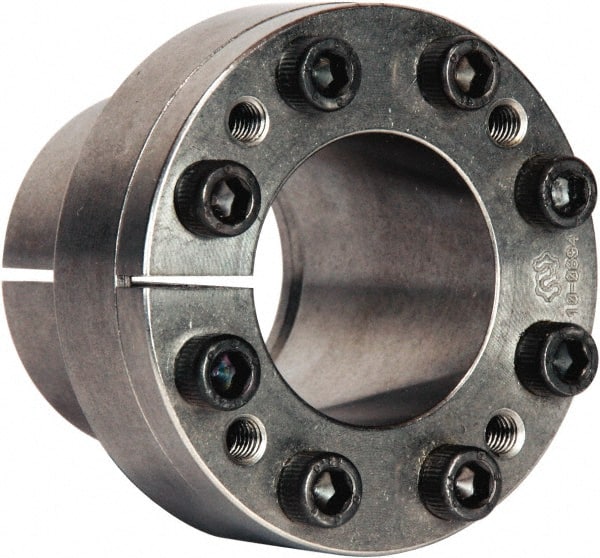

Climax Metal Products - M8 Thread, 2-3/8" Bore Diam, 3.031" OD, Shaft Locking Device - 9 Screws, 20,836 Lb Axial Load, 4-3/32" OAW, 2.165" Thrust Ring Width, 2,062 Ft/Lb Max Torque
Item #: 64642143
Brand: Climax Metal Products
Model #: C170E-237
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M8 |
| Bore Diameter (Inch) | 2-3/8 |
| Bore Diameter (Decimal Inch) | 2.3750 |
| Outside Diameter (Decimal Inch) | 3.0310 |
| Thrust Ring Width (Decimal Inch) | 2.165 |
| Overall Width (Decimal Inch) | 4.0940 |
| Axial Load Lbs (Pounds) | 20836 |
| Maximum Torque (Ft/Lb) | 2062 |
| Number of Screws | 9.000 |
| Contact Pressure on Hub (psi) | 8420.000 |
| Contact Pressure on Shaft (psi) | 10747.000 |
| Screw Seating Torque (In/Lb) | 360.000 |
