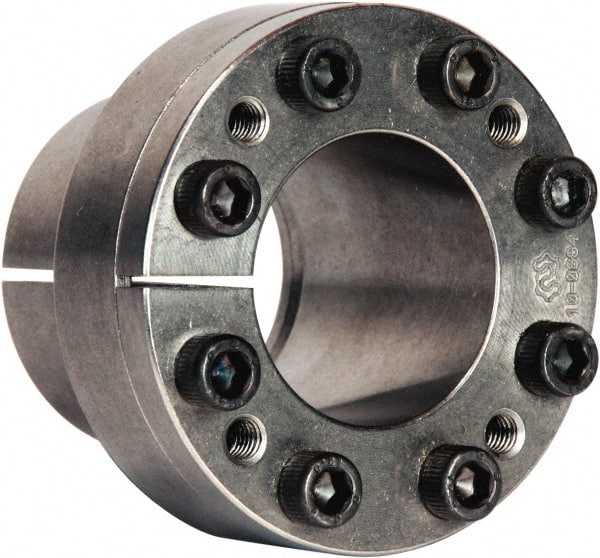

Climax Metal Products - M6 Thread, 1-7/16" Bore Diam, 1.969" OD, Shaft Locking Device - 8 Screws, 10,024 Lb Axial Load, 2.835" OAW, 1.26" Thrust Ring Width, 600 Ft/Lb Max Torque
Item #: 64642259
Brand: Climax Metal Products
Model #: C170E-143
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M6 |
| Bore Diameter (Inch) | 1-7/16 |
| Bore Diameter (Decimal Inch) | 1.4375 |
| Outside Diameter (Decimal Inch) | 1.9690 |
| Thrust Ring Width (Decimal Inch) | 1.260 |
| Overall Width (Decimal Inch) | 2.8350 |
| Axial Load Lbs (Pounds) | 10024 |
| Maximum Torque (Ft/Lb) | 600 |
| Number of Screws | 8.000 |
| Contact Pressure on Hub (psi) | 10721.000 |
| Contact Pressure on Shaft (psi) | 14682.000 |
| Screw Seating Torque (In/Lb) | 156.000 |
