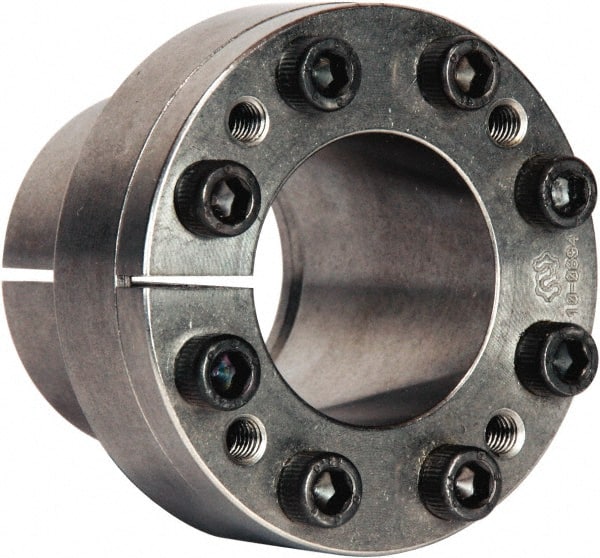

Climax Metal Products - M6 Thread, 1-1/8" Bore Diam, 1.535" OD, Shaft Locking Device - 6 Screws, 7,518 Lb Axial Load, 2.402" OAW, 0.984" Thrust Ring Width, 352 Ft/Lb Max Torque
Item #: 64642291
Brand: Climax Metal Products
Model #: C170E-112
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M6 |
| Bore Diameter (Inch) | 1-1/8 |
| Bore Diameter (Decimal Inch) | 1.1250 |
| Outside Diameter (Decimal Inch) | 1.5350 |
| Thrust Ring Width (Decimal Inch) | 0.984 |
| Overall Width (Decimal Inch) | 2.4020 |
| Axial Load Lbs (Pounds) | 7518 |
| Maximum Torque (Ft/Lb) | 352 |
| Number of Screws | 6.000 |
| Contact Pressure on Hub (psi) | 13195.000 |
| Contact Pressure on Shaft (psi) | 18009.000 |
| Screw Seating Torque (In/Lb) | 156.000 |
